Electric Propulsion

To overcome hurdles associated with our own pursuits relating to precision formation-flight, we have had to build and qualify our own electric propulsion system from scratch. This has also allowed us to compress the price-point associated with our ORB family of satellite platforms to compelling levels. And has enabled us to build the Guardian family of satellites in a more cost-effective way.

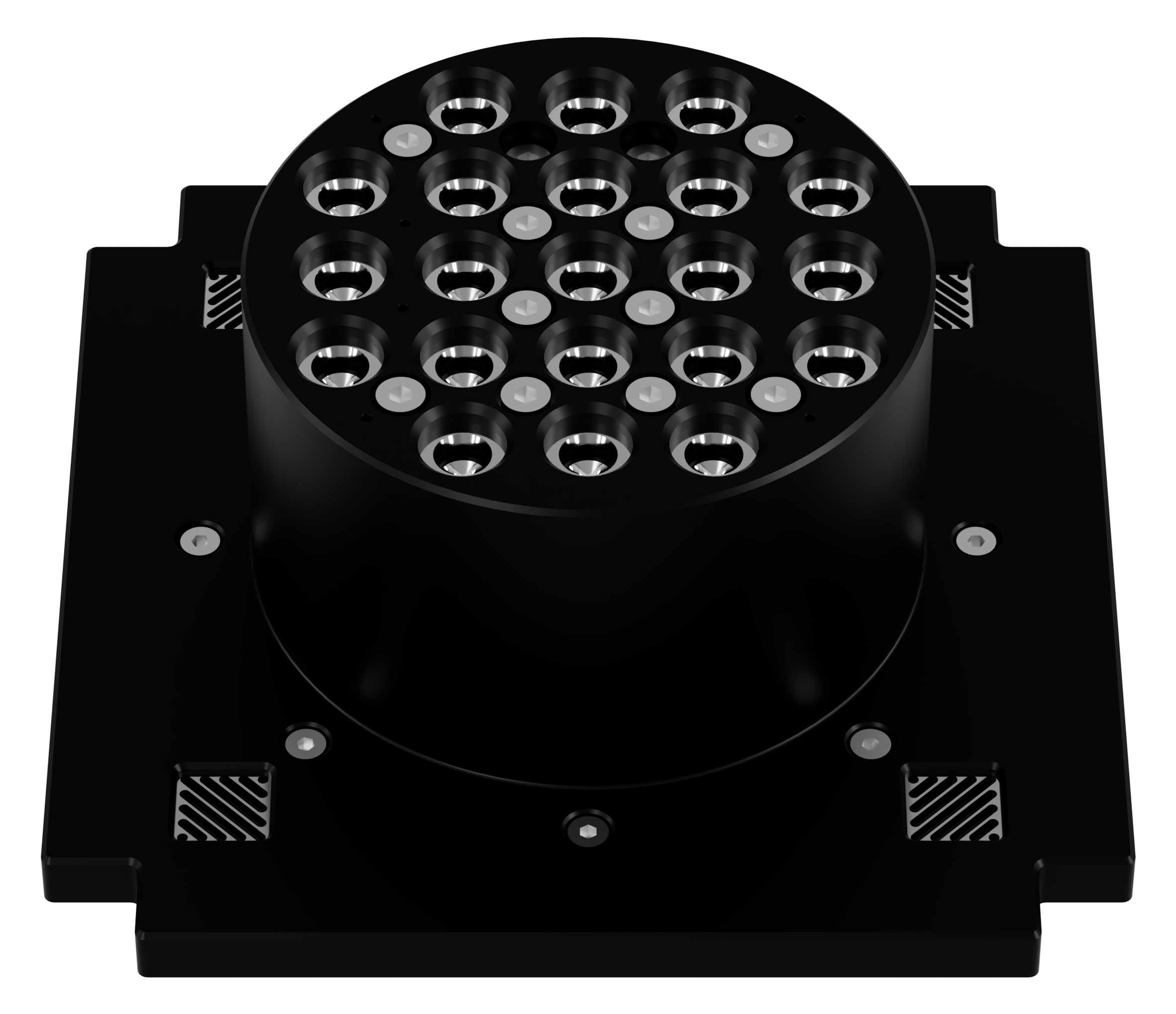

The Nova product-line is the baseline propulsion system used in the ORB-class satellite platforms. It is specifically built to capitalise on usage of the often-neglected “tuna-can” volume made available for nanosatellites, minimising impact on volume consumed within the platform. The Kilonova and Supernova product-lines, built for compatibility with CubeSat platforms, are upgradable variants of propulsion for larger ORB-class and Guardian-class satellite platforms.

Typical Functions:

Accelerated deployment of constellations​

Accelerated RAAN drifting​

Formation maintenance​

Orbit raising

Station-keeping/Life-extension​

Collision avoidance​

Active deorbiting at end of mission

System Features:

Compact, efficient Carbon Nanotube (CNT) neutralizers​

No pressurized tanks or moving parts​

Low melting point, liquid metal propellant​

Integrated electronics​

Redundant design features​

These flight-qualified product-lines will be available for shipping from May-21 onwards.

Variant

Nova

Kilonova

Supernova

Price

£19,200

£29,400

£55,500

Dynamic Thrust Range

20-120μN

50-290μN

50-290μN

Max. Delta-V

(assuming 5kg satellite)

0.46km/s

1.1km/s

6.3km/s

Total Impulse

> 2,000Ns

> 5,000Ns

~ 26,000Ns

Thrust Vectoring

< 0.1º

< 0.1º

Precision Control

< 0.1μNs

< 0.1μNs

Wet Mass (inc. PPU)

471g

1,022g

1,651g

Volume

Z-face, tuna-can

92x92x40mm

92x92x90mm

Nominal Total

Power Consumption

44W

66W

66W

Operating Voltage

7-36V

12-36V

12-36V

Get in touch: hello@orbastro.com
